Dimension
Dimension
2010x850x1180mm
Wheel Base
1380mm
Seat Height
910mm
Curb Weight
91kg
Carrying Capacity
100kg
Ground Clearance
315mm

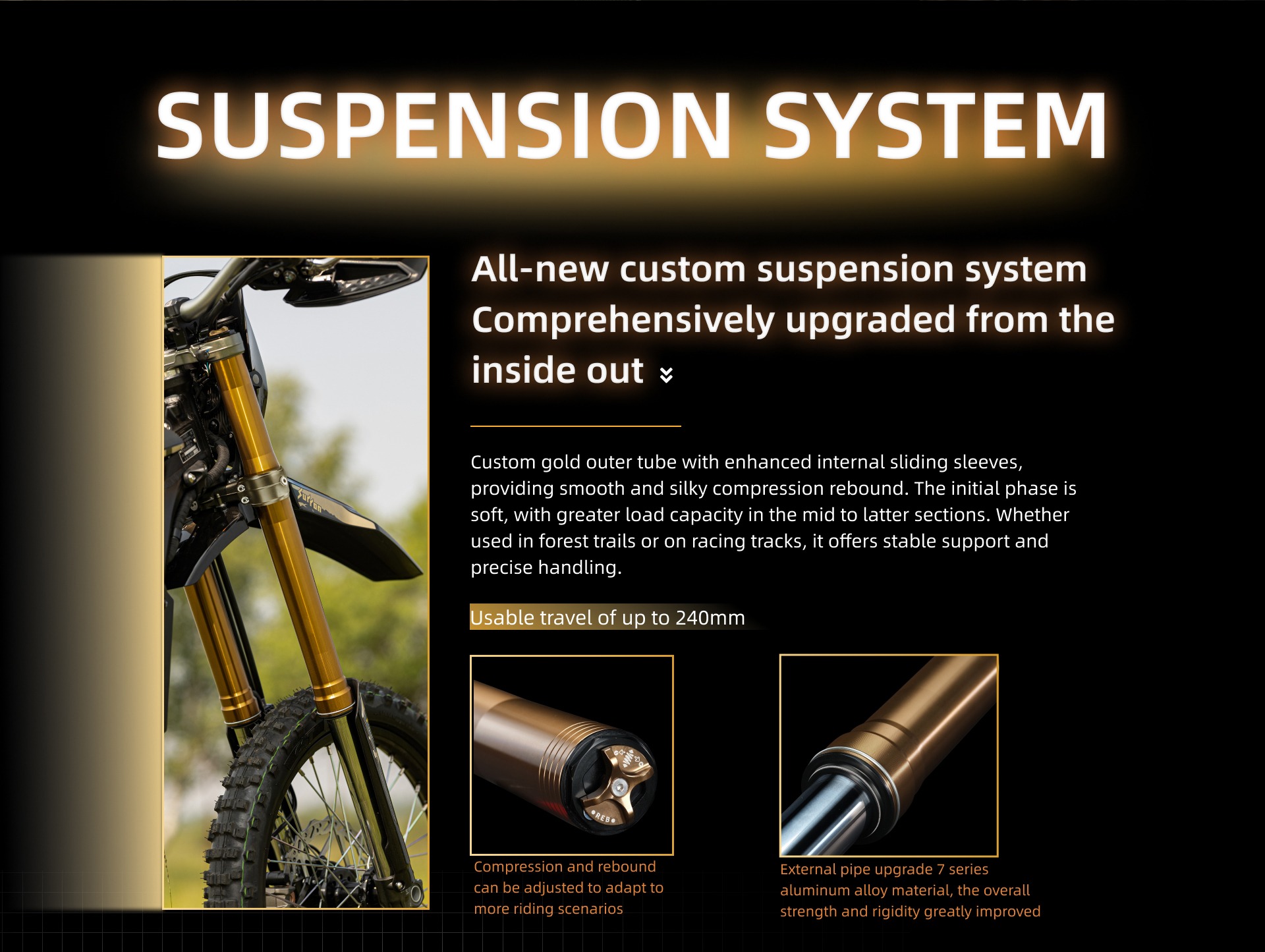

Front Fork Travel
240mm
Rear Shock/Wheel Travel
85/240mm
Power System
Max. Torque(on wheel)
511N.m

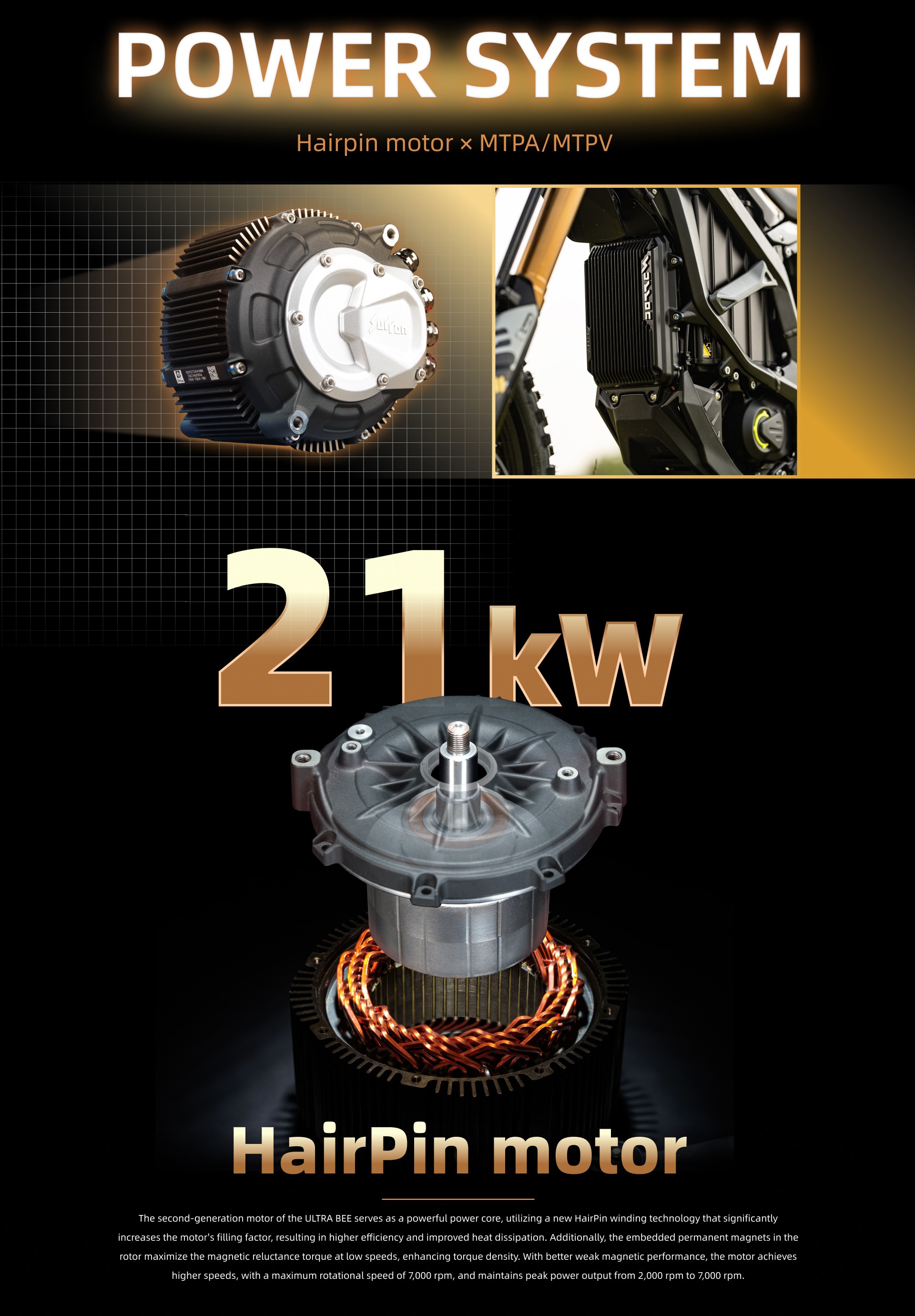

Power System

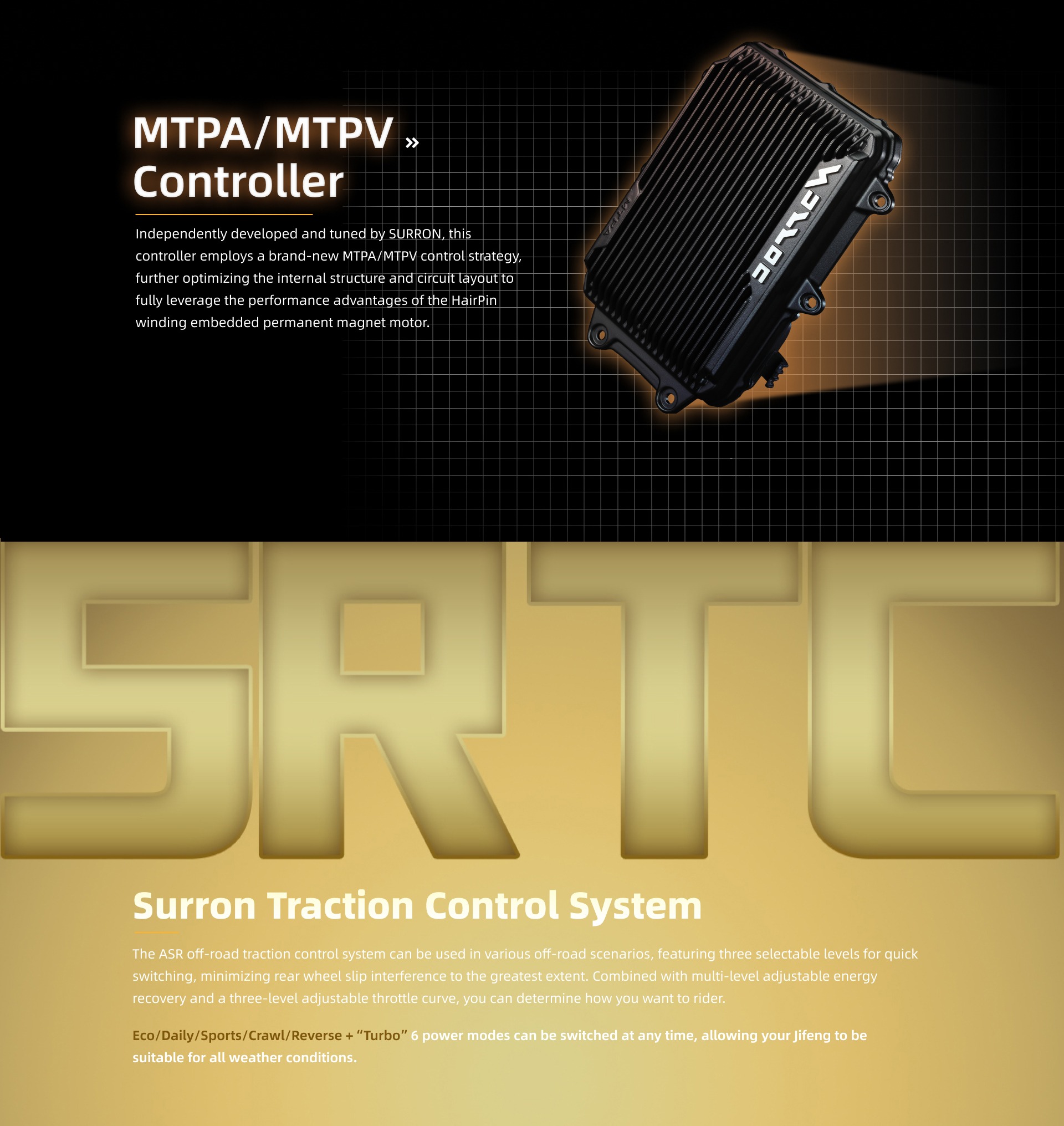

PMSM，MTPA/MTPV Controller
Maximum Power(Motor)
18kW（Turbo-21kW）
Riding Mode
Eco/Daily/Sports/Crawl/Reverse + "Turbo " mode
Assistance Functions
SRTC+BERS

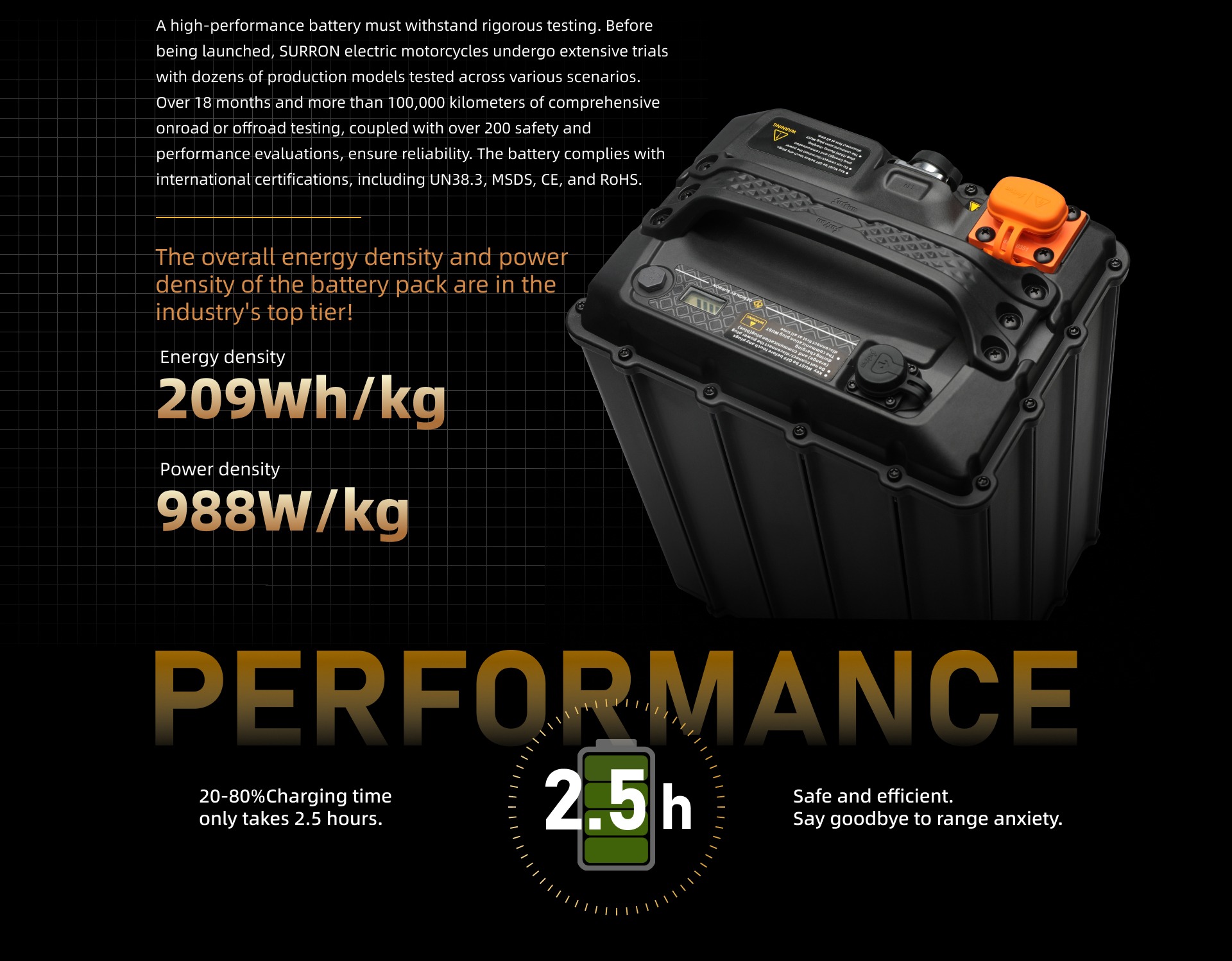

Battery
Battery Type
74V/60AH Lithium-ion Battery pack
Throttle Curve
Three-stage Adjustable
Primary Belt System
Carbon fiber belt
Forged pulley
Tungsten carbide coating
Charging Parameter
Three different charging power
Level-U1(425W)-U2(765W)-U3(1100W)
Performance
Top Speed
95km/h
WMTC road
115km@50km/h
Charge Time(20%-80%)
2.5h
Frame & Tire
Tires Type
Front-80/100-19 Off-Road
Rear-100/90-18 Off-Road
Frame Material
Forged aluminium alloy
Assistant Functions
GPS Terminal
APP connection (if available)
Crawl mode
Three-stage Adjustable
Tilt Protection
Gyroscope sensor
(Can be turned off in feature setting mode)
Color
Carbon Black（black&yellow）、Desert Brown
